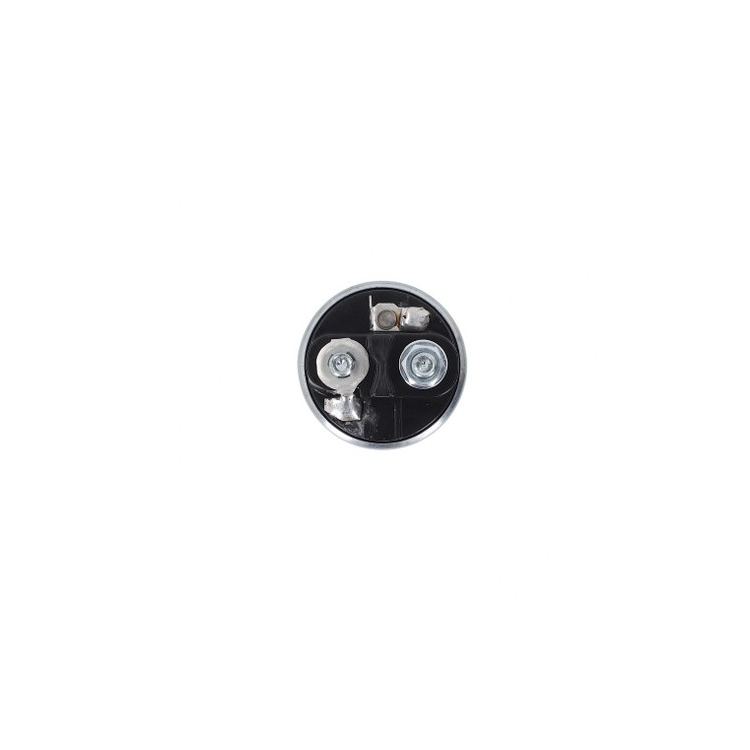

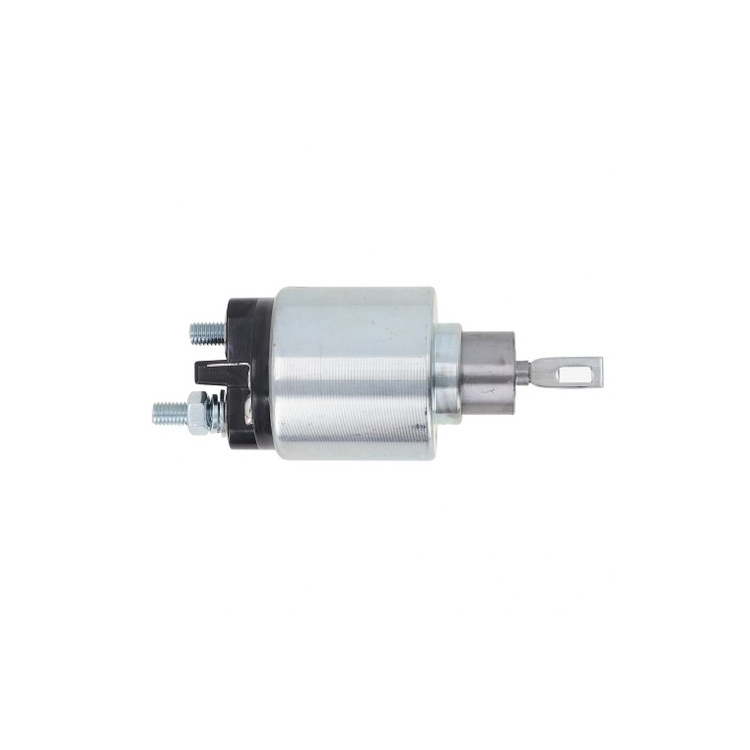

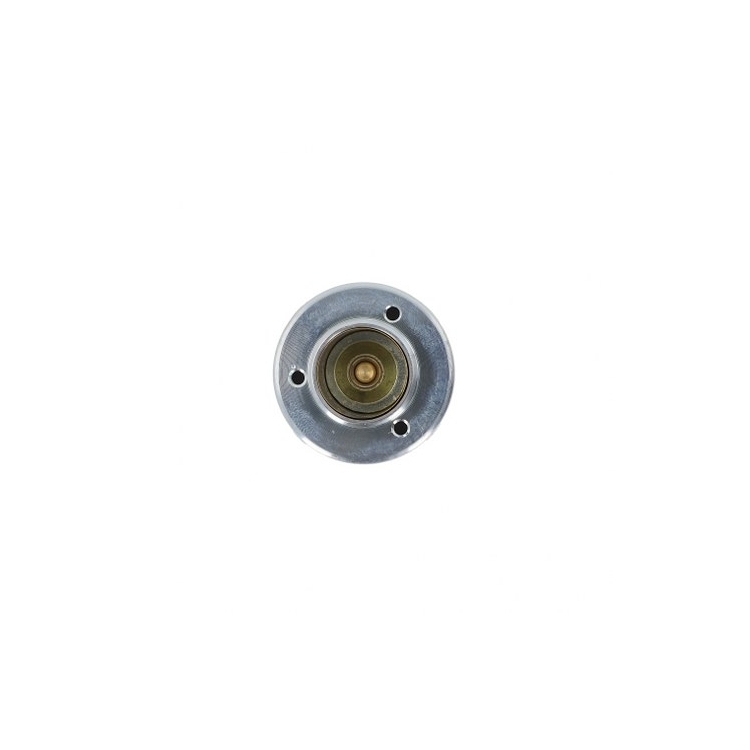

Elektromagnetas starterio / 136852

Starter armatures

Power [ kW ]

5.5

Voltage [ V ]

24

Teeths / Splines [ qty ]

11

Slots [ qty ]

23

O.D.1 [ mm ]

59.80

O.D.2 [ mm ]

36.00

L.1 [ mm ]

191.20

Rotation

CW

Starter brush holders

I.D.1 [ mm ]

33.60

O.D.1 [ mm ]

69.70

H.1 [ mm ]

25.50

H.2 [ mm ]

18.40

L.1 [ mm ]

75.00

G.1 [ mm ]

6.30

Matching Brush set:

BSX157-158

Starter brush holders

I.D [ mm ]

34.30

O.D [ mm ]

74.00

H.1 [ mm ]

25.00

H.2 [ mm ]

18.40

L.1 [ mm ]

74.30

G. [ mm ]

6.20

Matching Brush set:

BSX208-209

Starter solenoids

Voltage [ V ]

12

I.D.1 [ mm ]

25.00

O.D.1 [ mm ]

51.40

O.D.2 [ mm ]

45.30

L.1 [ mm ]

72.10

B+ [ mm ]

M8x1.25

[ mm ]

13.40

Coil bolt [ mm ]

M8x1.25

[ mm ]

13.40

Starter solenoids

Voltage [ V ]

12

O.D.1 [ mm ]

51.40

O.D.2 [ mm ]

43.70

L.1 [ mm ]

79.00

B+ [ mm ]

M8x1.25

L.B+ [ mm ]

17.30

Coil bolt [ mm ]

M8x1.25

L.Coil bolt [ mm ]

19.70

Starter solenoids

Voltage [ V ]

12

I.D.1 [ mm ]

27.00

O.D.1 [ mm ]

56.40

O.D.2 [ mm ]

49.80

L.1 [ mm ]

68.10

B+ [ mm ]

M8x1.25

[ mm ]

16.60

Coil bolt [ mm ]

M8x1.25

[ mm ]

11.20
