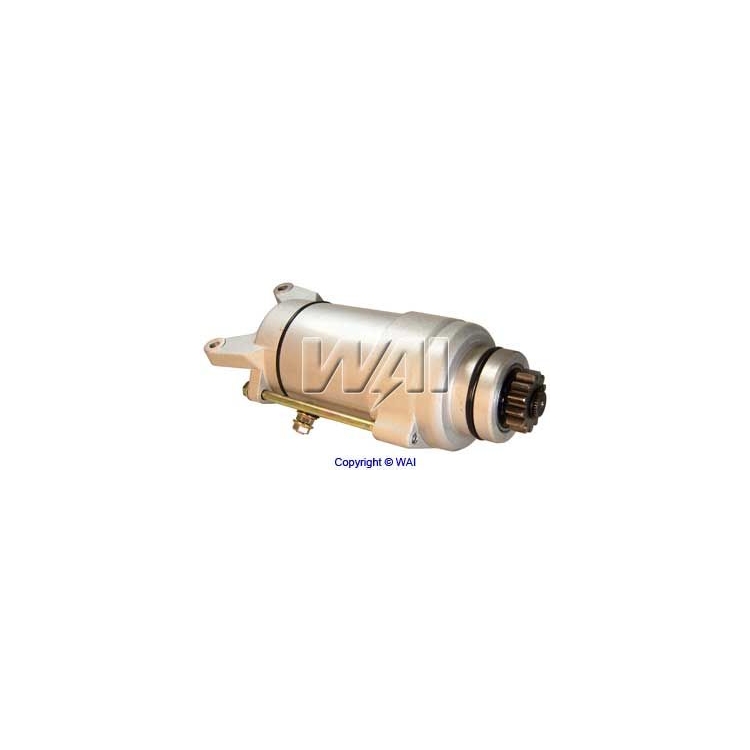

Стартер* / MS-13
135,00 €
С НДС

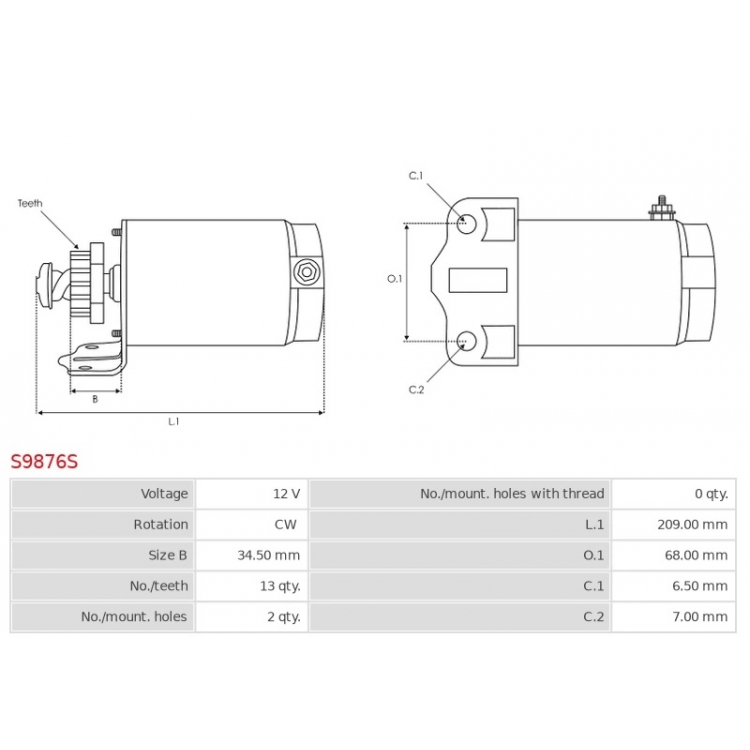

| Starters | |
| Voltage [ V ] | 12 |
| Rotation | CW |
| Size B [ mm ] | 34.50 |
| No./teeth [ qty. ] | 13 |
| No./mount. holes [ qty. ] | 2 |
| No./mount. holes with thread [ qty. ] | 0 |
| L.1 [ mm ] | 209.00 |
| O.1 [ mm ] | 68.00 |
| C.1 [ mm ] | 6.50 |
| C.2 [ mm ] | 7.00 |
Duomenų apsauga
Jūsų duomenys griežtai tvarkomi pagal Duomenų apsaugos reglamentą.
Pristatymo informacija
Pristatymas per 1-3 darbo dienas
Grąžinimo taisyklės
Pas mus taikomas standartinis prekių grąžinimas (14 kalendorinių dienų)
UD102719S
S9876S
RAS41249
DELCO
SMU0305
ARROWHEAD
242-06184
DIXIE
108714
FARCOM
255533
KUHNER
18748
LESTER
191-380
PIC
191-380A
PIC
400.089.132.200
PSH
18748N
WAI / TRANSPO
71-26-18748
WILSON
STR75453
WOODAUTO
WOOSTR75453
WOODAUTO
5EL-81890-00-00
YAMAHA
5EL-81890-01-00
YAMAHA
Condition
New
Design
PMDD
Hot Sale
No
LESTER NUMBERS
18748
MFR
MITSUBA
Part Type
Starter
Replaces
Yamaha 5EL-81890-00-00, 5EL-81890-01-00
Rotation
CW
Specifications
SPECS:12 Volt, CW, 13-Tooth Pinion
SPECS FOR:Mitsuba PMDD
MFR:MITSUBA
DESIGN:PMDD
VOLTAGE:12
ROTATION:CW
TEETH:13
FEATURE 1:100% New
Teeth
13
Voltage
12
Detailed vehicle Application
Make | Model | Year | Engine |
Yamaha | XV1100 Virago | 1999 | 1063cc |
Yamaha | XVS1100 V Star 1100 Custom | 1999-2002 | 1063cc |
Yamaha | XVS1100 V Star 1100 Custom | 2003-2009 | 1063cc |
Yamaha | XVS1100A V Star 1100 Classic | 2000-2003 | 1063cc |
Yamaha | XVS1100A V Star 1100 Classic | 2003-2009 | 1063cc |
Yamaha | XVS1100AT V Star 1100 Silverado | 2002 | 1063cc |
Yamaha | XVS1100AT V Star 1100 Silverado | 2003-2009 | 1063cc |
Brand | Model | Type | Year |
YAMAHA | XV XV 1100 Virago (3LP) | 01.1988 - 12.1999 | |
YAMAHA | XVS XVS 1100 A Drag Star Classic (VP05) | 01.2000 - 12.2007 | |
YAMAHA | XVS XVS 1100 A Drag Star Classic (VP05) | 01.2003 - 12.2007 | |
YAMAHA | XVS XVS 1100 Drag Star (VP05) | 01.1999 - 12.2004 |
