Drive / 1006209661
1006209661 / BOSCHProduct features:
Starter drives
No. teeth [ qty ]
10
No. splines [ qty ]
16
I.D. [ mm ]
12.00
O.D. 1 [ mm ]
47.50
O.D. 2 [ mm ]
27.80
L. [ mm ]
72.40
L.2 [ mm ]
35.80
Rotation
CW
21,00 €
new arrival
-
- Нет в наличии
Drive / 1006209661
1006209661 / BOSCHProduct features:
Starter drives
No. teeth [ qty ]
10
No. splines [ qty ]
16
I.D. [ mm ]
12.00
O.D. 1 [ mm ]
47.50
O.D. 2 [ mm ]
27.80
L. [ mm ]
72.40
L.2 [ mm ]
35.80
Rotation
CW
- Нет в наличии

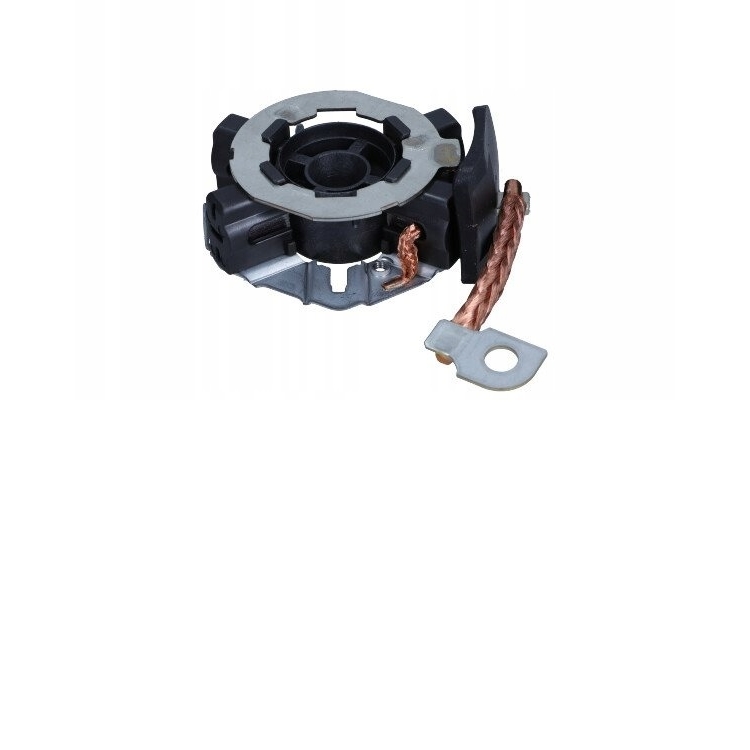

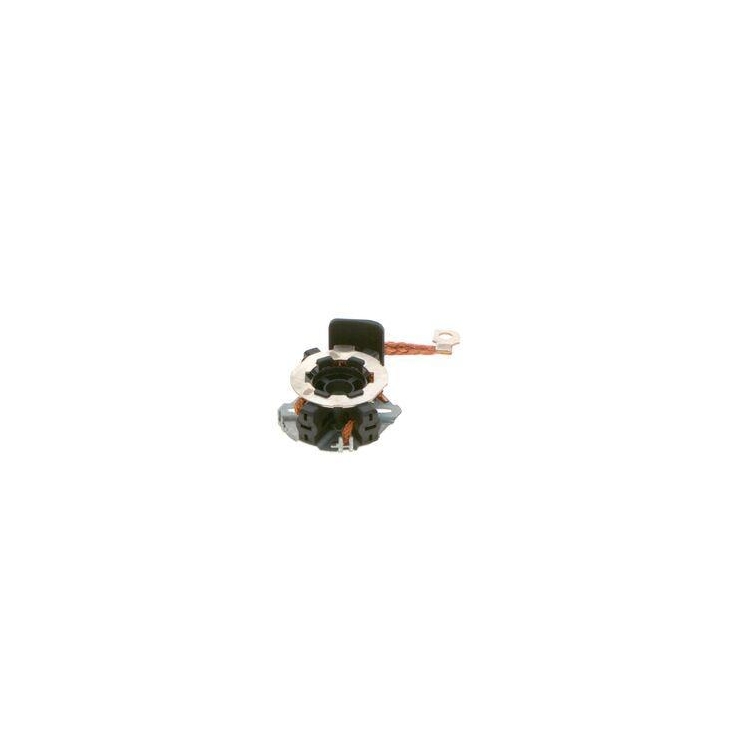

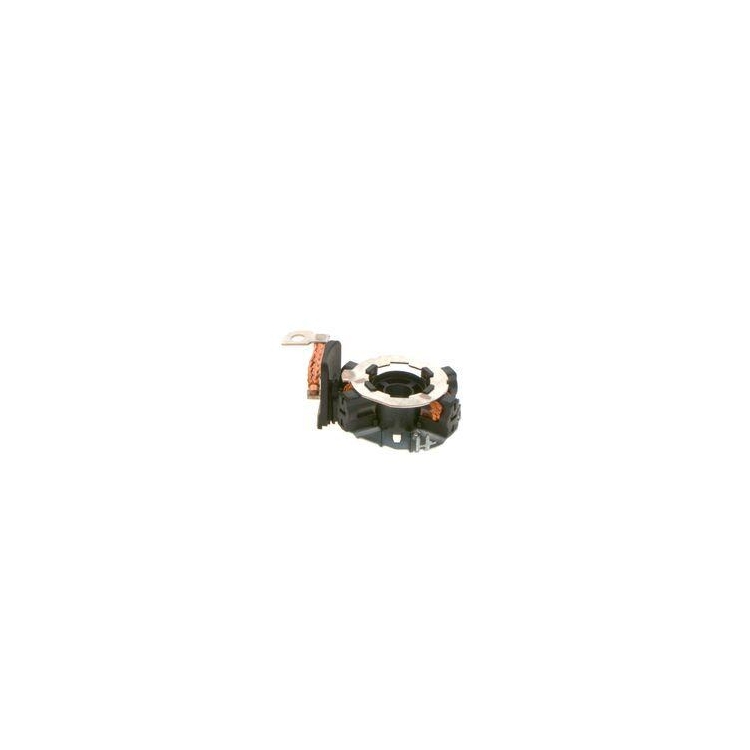

Щеткодержатель стартера / 1004337019
24,00 €
С НДС
SBH0114S / 235091 / 1004337019
Starter brush holders | |
I.D.1 [ mm ] | 34.00 |
O.D.1 [ mm ] | 68.40 |
H.1 [ mm ] | 29.00 |
H.2 [ mm ] | 19.70 |
L.1 [ mm ] | 44.80 |
G.1 [ mm ] | 4.70 |
Matching Brush set: | SB0013S |
Duomenų apsauga
Jūsų duomenys griežtai tvarkomi pagal Duomenų apsaugos reglamentą.
Pristatymo informacija
Pristatymas per 1-3 darbo dienas
Grąžinimo taisyklės
Pas mus taikomas standartinis prekių grąžinimas (14 kalendorinių dienų)
UD12937SBH AS-PL
1004337019 BOSCH
235091 CARGO
7.7541.1 IKA
03G911209J VW
BHS1119 ELECTROLOG
PAPA233 GHIBAUDI
SHB5091 KRAUF
1018280 POWERMAX
BHD5018 WOODAUTO
Reference nb | Producer |
0001139041 | BOSCH |
0001139042 | BOSCH |
0001139074 | BOSCH |
S0746S | AS-PL |
775411
1 Шт.
Особые артикулы
Обзор
No customer reviews for the moment.
16 другой продукт
- Нет в наличии
Lock rings for drive - / SDK0043
Product features:
|
Starter lock rings for drives |
|
|
I.D.1 [ mm ] |
26.00 |
|
O.D.1 [ mm ] |
51.40 |
|
W.1 [ mm ] |
25.60 |
|
T.1 [ mm ] |
1.00 |
Bendeksas / 1006209619
131104 / SD0014 / 1006209530 / BOSCH
| Starter drives | |
| Teeth [ qty. ] | 9 |
| Splines [ qty. ] | 10 |
| I.D.1 [ mm ] | 12.00 |
| O.D.1 [ mm ] | 47.50 |
| O.D.2 [ mm ] | 25.40 |
| L.1 [ mm ] | 58.80 |
| L.2 [ mm ] | 15.00 |
| Rotation | CW |
1986SE1617
Outer gear - / SG3017
Product features :
|
Starter outer gears |
|
|
I.D.1 [ mm ] |
54.50 |
|
I.D.2 [ mm ] |
20.00 |
|
O.D.1 [ mm ] |
68.00 |
|
L.1 [ mm ] |
35.40 |
|
Teeths [ qty ] |
56 |
- Нет в наличии
Bendeksas / SD1019
SD1019 / AS
No./teeth 10
No./splines 12
L. [ mm ] 47
O.D. 1 [ mm ] 26.8
I.D. [ mm ] 12
Reduktorius / 3471
3471 / GHIBAUDI MARIO
Product features:O.D. 69.65
I.D. 46.90
H. 32.00
No. of teeth 37
- Нет в наличии
Šepetėlių laikiklis / 234896
234896 / CARGO
Product features:O.D [ mm ] 72.00
Matching Brush set: BSX157-158
- Нет в наличии
- Нет в наличии
- Нет в наличии
Elektromagnetas / 133857
133857 / CARGO
12 V. 4 terminals, insulated return
100 Amp. continuous, 800 Amp in rush
3.95-4.15 coil resistance
D.e. bracket - / SBR0007
Product features:
|
Starter d.e. brackets |
|
|
I.D.1 [ mm ] |
28.30 |
|
H.1 [ mm ] |
87.70 |
|
O.1 [ mm ] |
101.60 |
|
O.2 [ mm ] |
102.20 |
|
O.3 [ mm ] |
106.50 |
|
Size A [ mm ] |
76.00 |
|
No./mount. holes [ szt ] |
3 |
|
No./mount. holes with thread [ szt ] |
0 |
Щетки стартера / 019711
019711 / IKAA
Product features:Voltage [ V ] 12
T. [ mm ] 6.96
W. [ mm ] 12.00
H. [ mm ] 17.50
- Нет в наличии
Bendeksas / 133897
133897 / CARGO
No./teeth 11
No./splines 9
L. [ mm ] 61.5
O.D. 1 [ mm ] 29.6
I.D. [ mm ] 12
